Package Includes:
- 1025R Sub-Compact Utility Tractor
- 102R Quik-Park Loader + Bucket
- Box Blade
- 10-Year PrairieLand PowerTrain Warranty
Not sure which Compact Utility Tractor is right for you?
Download our PrairieLand Partners Tractor Buying Guide here.
.jpg)

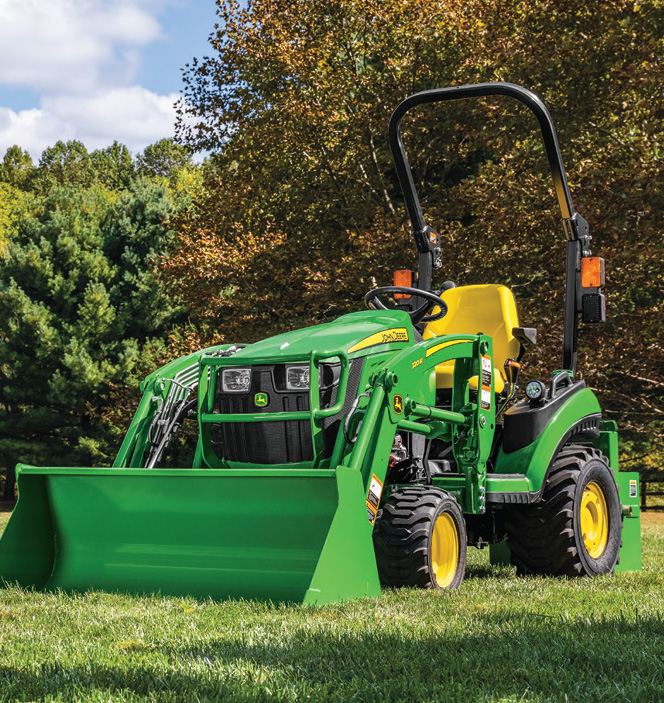

2023 John Deere 1025R Base
2023 1025R Sub-Compact Tractor
Features
• Powerful Tier 4-compliant diesel engine
• New, easy-lift hood with dual gas-charged lift struts
• Hydrostatic transmission (HST) with Twin Touch™ foot controls
• Premium Operator Station with ergonomic seat, armrests and fender lights
• Easy operation four-wheel drive (4WD) power steering
120R Loader + Bucket
Features
• Quik-Park stands for easy atttachment and removal
• Easily remove and mount loader to and from the tractor without tools
• End-of-pin lubrication on cylinder and pivot pins allows easy access for
servicing grease points
• 754 lbs. (342 kg) of lift capacity
• 72 in. (1,828 mm) of lift height
Engine
Engine Type
Yanmar 3TNV80F
Engine Power
Gross: 24.2 (17.8)
Rated Engine Speed
3,200 rpm
Displacement
77.3 cu. in. (1,267 cc)
Battery
Power: 500 CCA
PTO
PTO Type
Independent
PTO Power, Hydrostatic Transmission
18 (13.4)
Standard PTO
Rear @ 540; Mid @ 2,100
Drivetrain
Transmission
Std. Transmission; Forward/Reverse: Hydrostatic - 2 range | Forward/Reverse Control: Twin Touch Pedals | Final Drive: Spur gear | Cruise Control | Brakes: Wet disk, left-hand pedal
Hydraulics
Steering
2.8 g/m (10.8 l/m)
Hydraulic Flow
Implement: 3.5 g/m (13.2 l/m)
Electric
Alternator
12 volt, 40 amp
Wheels & Tires
Tires, Rear Specification
26X12-12 R4 | R4 - 47.32 in. (1,202 mm)
Tires, Front Specification
18X8.5-10 R4
Dimensions
Wheelbase
57.1 in. (1,450 mm)
Capacities
Hydraulic Capacity
6.3 g/m (24 l/m)
Hitch Lift Capacity
3 point Limited Cat. 1 (24-in. behind link arms): 681 lb. (309 Kg)
Pump Type
Gear
Weights
Weight
Approx. Ship: 1444 lb. (655 kg)
Features
Features
iMatch Quick-Hitch Compatibility | Rockshaft Control Type: Position Control
